Waterproof Voltage Power Transformer AC to DC24V 12.5A 300W

Waterproof DC 24V 300W Power Supply Transformer

Our high-performance waterproof power supply converts standard UK mains voltage into a stable 24V DC output, ideal for lighting systems. Built with a durable aluminium alloy casing and IP67 protection, it resists dust, water, and harsh outdoor conditions. Designed for reliability, it features short-circuit, overload, overvoltage, and overtemperature protection, ensuring safe and efficient operation even in challenging environments.

Details

• Product Name: AC to DC Waterproof Power Supply
• Colour: Blue
• Material: Aluminium alloy housing (potted)
• Waterproof: IP67
• Protections: Short Circuit Overload Overvoltage Overtemperature Input Surge
• Working temperature: -30°C ~ +50°C (Derate above +45°C)
• Working humidity: 20~90%RH, No condensation
• Storage temp & hum: -40°C ~ +85°C, 10~95%RH, No condensation
• Temperature coefficient: ±0.03%/°C (0–50°C)
• Vibration resistance: 10~500Hz

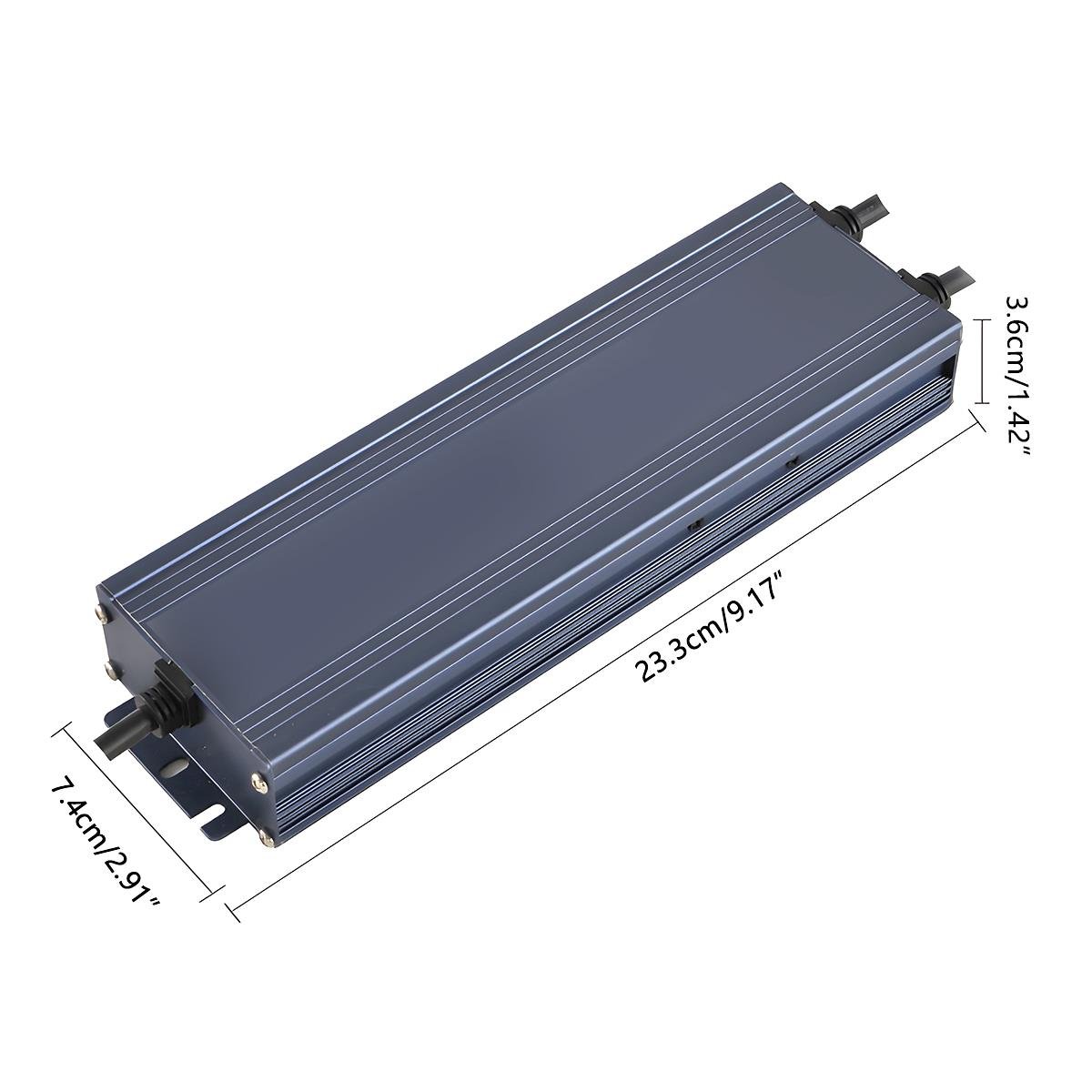

• Size: 235 × 75 × 35 mm (L × W × H)
• Weight: 1.26 kg

Specification

• Input voltage: AC 170V–265V
• Output voltage: DC24V
• Rated current: 12.5A
• Current range: 0~12.5A
• Rated power: 300W
• Frequency Range: 50/60Hz
• Efficiency (Typical): 90%
• Power Factor: ≥0.95 @230V AC full load
• Inrush Current: ≤60A @230V cold start
• Class: Class I (Protective Earth required)

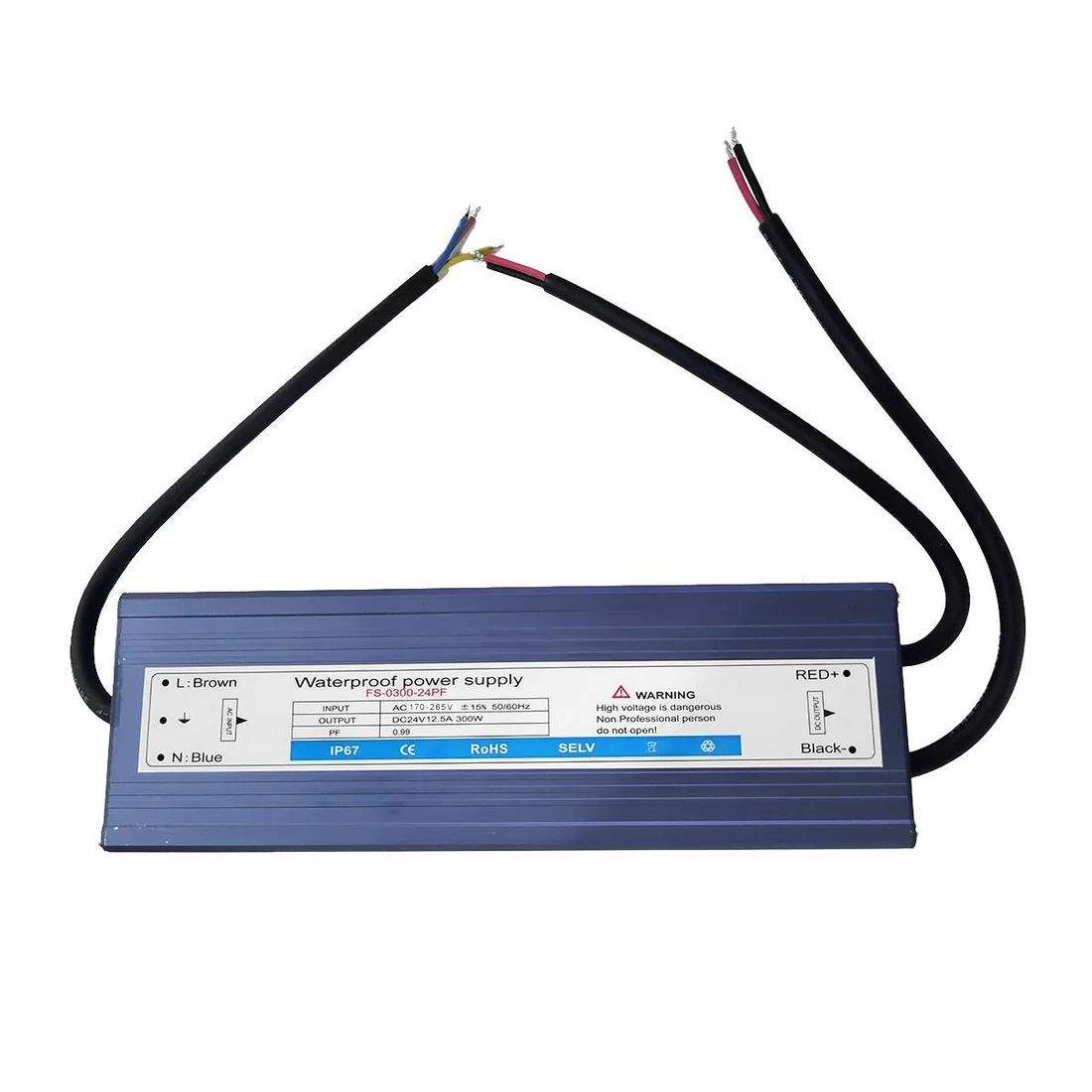

• Connection: Input L/N/PE, Output V+/V−
• Ripple & Noise: ≤200mVp-p
• Compliance: UKCA / CE (EN62368-1, EN55032 Class B, EN61000-3-2 etc.)
• Plug: UK plug (BS1363) with 3A fuse or flying leads

What’s Included:

• 1 × 300W AC to DC 24V Waterproof Power Supply (IP67 rated)
• Pre-fitted UK plug with 3A fuse (or flying leads, depending on model)
• Quick start installation guide
